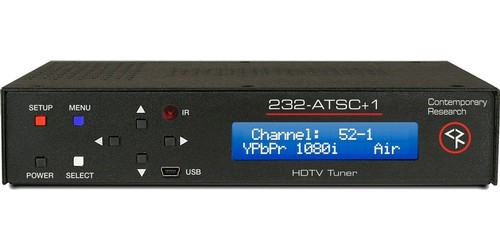

| Front Panel: |
|
Power, Menu, Setup and Select buttons |
|
Up and Down (Channel Up and Down) buttons |
|
Left and Right (Volume Up and Down) buttons |
|
Text Display, white text on blue LCD, channel and setup information |
|
Top line indicates channel number and name |
|
Lower line Input/Output resolution of current channel, and Air/Cable tuning |
|
IR Sensor |
|
Mini USB Port for S37 firmware updates |
|

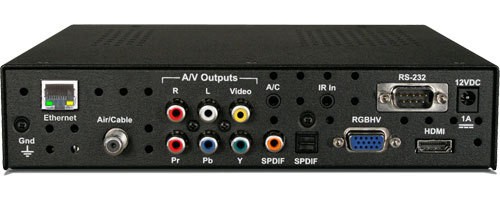

Back Panel: |
|
RF Input: Air/Cable, 'F', female, 75 ohm impedance |
|
Supports dual Cable and Air tuning with optional RF-AB RF A-B Switch |
|
Digital RF tuning for improved sensitivity |
|
HD Outputs: HDMI and switchable RGB/Component outputs operate simultaneously |
|
Component: RCA YPrPb outputs (1080p@60Hz, 720p@59.94/60 Hz, 1080i/480p@ 29.97 Hz) |
|
RGB: RGBHV DB-15 female (1080p@60Hz, 720p@59.94/60 Hz, 1080i/480p@ 29.97 Hz) |
|
HDMI: HDMI receptacle (4K 3820x2160@60Hz,1080p@60Hz, 720p@59.94/60 Hz, 1080i/480p@ 29.97 Hz), version 1.3, PCM/AC-3 digital audio, auto or manual DVI compatibility |
|
Composite Video: RCA female jack, always operational, echos digital HD output |
|
Audio Outputs: All operate simultaneoulsy, including SDI audio, select Consumer or Pro digital audio |
|
Digital Audio: S/PDIF: Coax and TOSlink optical output, AC-3, PCM, or PCM variable |
|
Stereo Audio: 2 stereo RCA female jacks, variable level |
|
Control Options |
|
RJ-45: 10/100 Ethernet connector, Telnet control and onboard Web page. Supports 2 Telnet sessions, UDP control to port number of 31931, reply at 31932 |
|
RS-232: DB-9 male, RS-232 data link to control system (protocol is the same for RS-232 or Telnet) |
|
300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit |
|
Control up to 9 tuners using daisy-chain wiring between ports |
|
IR: 3.5 mm stereo input for external IR sensor or wired IR, discrete codes available |
|
Air/Cable: 3.5 mm output to operate the RF-AB RF A-B Switch |
|
Power: 2.1mm coaxial jack (inside center conductor positive) |
|
1.1 A maximum, 11 to 14 VDC, 12 VDC typical, current draw 0.198A @114 VAC with power supply |
|
13.2W 45 BTU, 15.2W 52 BTU including power supply |
|
32F (0C) to 113F (45C) operating range |
|
Service: USB port for HD processor firmware upgrades |
|
Tuning: |
|
Type: Analog,ATSC, NTSC and Clear QAM (MPEG2 and MPEG4) |
|
DTV Standards: (1080i/ 29.97/ Hz/720p/480p/480i) |
|
Aspect Ratio: Adjustable, variety of modes for widescreen 16:9 and normal 4:3 broadcasts |
|
Captioning: Onscreen Analog and Digital, set by program or customized for size, font, and attributes |
|
Line 21 analog captioning on Composite Video |
|
Favorites: Favorite channel menu |
|
Lock: Parental option for channels and/or rating |
|
Additional Specs: |
|
Dimensions: 8.5" [216mm] wide x 1.75" [44mm] height (1.RU) x 8.0" [203mm] deep
Weight: 2.25 lbs [1 kg]
Rack mounting for one or two units side-by-side with included RKU |
|
RoHS compliant and energy-efficiency meets new California standards |
|
Additional cooling is not required for normal applications, where there many tuners in one rack, a rack fan is recommended to add air flow |
|
Included Accessories: PS12-1.5 Switching power supply, 1.5 A 12 VDC |
|

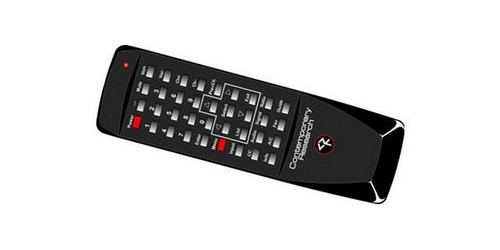

Optional remote available: HD2-RC IR |
|
Warranty: 2 Years |
